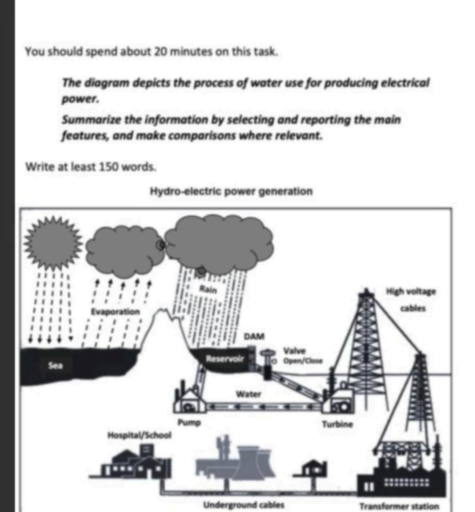

The diagram illustrates how water is utilized in a hydro-electric power generation system, showing both the natural water cycle and the technological stages involved in producing and distributing electricity.
Overall, the process is cyclical: solar energy drives evaporation from the sea, precipitation replenishes a reservoir behind a dam, and stored water is released to generate electricity before being returned and reused. Electricity produced at the power station is transmitted via cables to consumers such as public institutions and industry.
At the initial stage, heat from the sun causes seawater to evaporate, forming clouds that subsequently produce rainfall over elevated land. This precipitation collects in a reservoir retained by a dam. When electricity is required, a valve is opened, allowing water to flow downward through a channel toward a turbine. The force of the moving water rotates the turbine blades, which in turn drive a generator to produce electrical energy.
The generated power is then conveyed by high-voltage transmission lines to a transformer station, where it is adjusted for safe distribution. Finally, electricity is delivered through underground cables to end users, including hospitals, schools, and factories. After passing through the turbine, the water is pumped back toward the reservoir, enabling continuous operation and efficient reuse of the resource.
In summary, the system integrates natural hydrological processes with engineered infrastructure to convert gravitational water flow into usable electrical power and distribute it to society.
