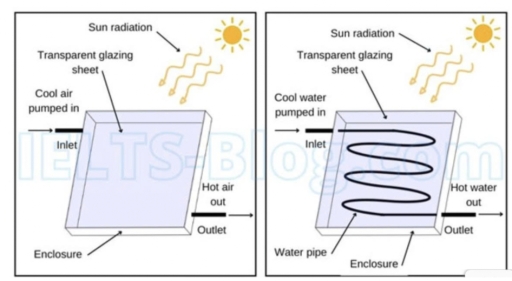

The diagrams illustrate the structure and principle of solar panels serving for resulting activities including raising the air’s and water’s temperature.
On the whole, both warming applications are based on the sun radiation reaching the transparent glazing sheet. The difference is the air is heated in a closed chamber before releasing while the water flows into the network of pipes over the process.
Regarding the scheme of the warming air machine, there are 3 steps in total beginning by pumping the cool air in the inlet to the chamber fixed by enclosures. Turning into the following step, through the sheet, the energy transformed from the radiation is taken advantage of inducing heating in the cavity to suitable temperature. Meanwhile, the hot air after being treated is evacuated constantly to the target receivers by the outlet.
In a similar way, the process of heating up the water has 3 stages starting by feeding it down to the input pipe. Subsequently, the cool water while being transferred into the track receives an amount of the converted heat contained in the system in order to gain the required temperature. In the terminal step, hot water is expelled to the outside environment functioning to follow-on activities.
