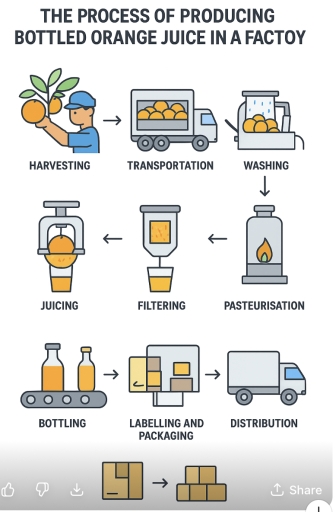

The diagram delineates the comprehensive procedure involved in the production of bottled orange juice within a factory setting.
This process encompasses nine distinct stages, commencing with the harvesting of oranges and culminating in the distribution of the final bottled product.
Initially, the oranges are harvested manually by pickers from the trees. Subsequently, they are transported via trucks to the factory, where they undergo a thorough washing process to ensure the removal of any contaminants. Following the cleanliness stage, the oranges are juiced through mechanical pressing, yielding fresh orange juice. The extracted juice then undergoes a filtering process to eliminate pulp and impurities, thereby enhancing its clarity and quality. This series of steps lays the foundation for the subsequent treatment of the juice.
The filtered juice is subjected to pasteurization, a crucial stage that involves heating the juice to eliminate harmful microorganisms, ensuring its safety for consumption. Once pasteurized, the juice is dispensed into bottles on a high-speed conveyor belt designed for efficient bottling. This is followed by the labeling and packaging phase, where each bottle is labeled accordingly and then consolidated into cartons for ease of handling. Finally, the packaged cartons are distributed via trucks, delivering the bottled orange juice to retailers and consumers alike, thereby completing the production cycle.
