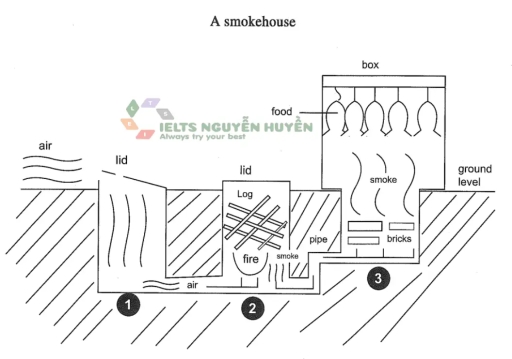

The diagram illustrates the structure and functionality of a traditional home smokery.
The smokery consists of three key sections: a firebox at the top, a smoke chamber in the middle, and a food storage area at ground level. It utilizes a simple yet effective design to produce smoked food products.
The firebox, labeled section 1, is situated at the highest point of the smokery. This section houses a fire that generates heat and smoke. An adjacent pipe provides the fire with a steady supply of air, which is drawn in through a lid at the top of the firebox. The firebox serves as the primary source of heat and smoke, crucial elements in the smoking process.
The smoke chamber, labeled section 2, is positioned directly below the firebox, allowing the smoke generated to flow downwards. The smoke chamber is typically constructed from bricks, providing a stable and heat-resistant enclosure. The smoke circulates throughout the chamber, eventually reaching the food storage area below. Finally, section 3, located at ground level, is a sealed box where food is hung. This section is also constructed of bricks, creating a safe and consistent environment for the food to be exposed to the smoke. Bricks are positioned internally to provide support for the hanging food. During the smoking process, the food is slowly cooked and infused with the flavor of the smoke, resulting in a traditional smoked product.
